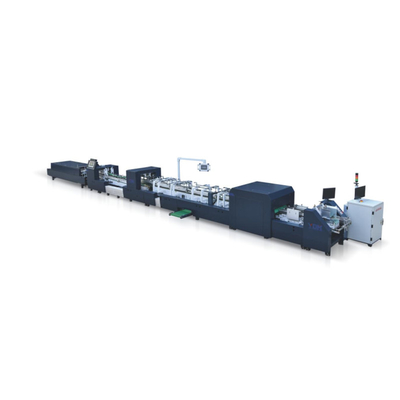

Hot Sale Jc-800S Carton Food Folder Gluer Machine Automatic Folder Gluer with Printing Inspection Machine

1.0 Sets
MOQ
Hot Sale Jc-800S Carton Food Folder Gluer Machine Automatic Folder Gluer with Printing Inspection Machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Type: Gluing Machine
Applicable Industries: Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops, Advertising Company, Packaging and printing industry, Gift box manufacturer, Carton manufacturer, Drug packaging box
Showroom Location: Viet Nam, India, Mexico, Thailand
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: YDM JC
Warranty of core components: 1 Year
Core Components: PLC, Engine, Motor
Condition: New
Application: Food, Beverage, Medical, Chemical, Machinery & Hardware, Textiles
Packaging Type: Cartons, Bags, Belt
Packaging Material: Plastic, Metal, Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V
Dimension(L*W*H): 20000 (L) *1550 (W) *1600(H) mm
Weight: 8500 KG
Warranty: 1 Year
Key Selling Points: Full Automatic
After-sales Service Provided: Engineers
speed: 400m/min
Box type: one side,lock bottom,four corner,six corner with inspection function
Min.spot defect size: 0.1mm2(contrast>15)
Min.Linear Defect size: 0.15mm*5mm(contrast>15)
Overprint detection accuracy: ±0.15mm
Die-cutting detection accuracy: ±0.3mm
Power consumption: 19KW, 380V AC ,50Hz,3P
Max inspection speed: 200m/min
code inspection: Code repeated, code missing,code mistake
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Packaging Details: Wooden ,metal carton Packing
Supply Ability: 20 Set/Sets per Month
Περιγραφή προϊόντων
Product Description
Specification
Box Type
Paper Size (W x L)
One point box
Max : 800 x 600 mm
Min : 600 x 75 mm
3 point boxes
Max : 800 x 600 mm
Min : 600 x 80 mm
4 points boxes
Max : 800 x 600 mm
Min : 180 x 150 mm
Six corners
Max : 700 x 600 mm
Min : 250 x 160 mm
Paper weight
duplex box 200-1200 g/m2, A、B、E Flute (Corrugated)
speed
400m/min
size
15000 (L) ×1600 (W) ×1900mm(H)
Weight
8500Kg
Power consumption
19KW, 380V AC , 50Hz,3P
Box Type
Straight line boxes ,lock bottom boxes ,one side glue boxes and two sides glue boxes,4/6 corner boxes
Max.inspection speed
200m/min
Min.spot defect size
0.1mm2(contrast>15)
Min.Linear Defect size
0.15mm*5mm(contrast>15)
Color difference accuracy
Δ E ≥ 3
Overprint detection accuracy
±0.15mm
Die-cutting detection accuracy
±0.3mm
code inspection
Code repeated, code missing,code mistake
code appearance inspection
Printing missing,break,spot,printing misplace,smear
Feature
1.Independent motor drive structure
2.the plate transmission structure adopts linear guide slider ,which has high precision and longer life than steel.
3.the pressure adjustment of the correction plate adopts a linear guide device,and the pressure can be accurately adjusted.
4.using 30mm thickened steel bending bow and double bending bow to fix the hanging plate,when machine run at high speed is more stable and firmer
5.modular design of special aluminum，easy for parts installation,personalized box types upgrade,convenient and flexible operation.
6.auto motorized adjustment system with wireless remote control,more convenient for operation and save time when setup machine
7.the folding installation board adopts the upper hanging board structure,the upper belt main transmission structure,the transmission and folding force us greater ,the lower belts are permanently synchronized . the box is not easy to slip.
8.the trombone section adopt variable frequency motor transmission structure,and independent speed regulation is convenient for opening the gap between the paper and the paper,which is more stable and smooth.
9.register section adopt linear guide device to adjust the height accurately
10.with special aluminum material module design
11.multi-ditch belt drive for more stable running
12.plc operation system and HCI system
Main feature
DESCRIPTION
FEEDER
● feeding belts ● Equipped with adjustable feeding knives: ● Equipped with vibrator motor : ● Equipped with Japanese infinite speed regulator . ●Independent motor variable frequency drive ●Suction feeding system
Alignment
●Products leaving feeding section can be straightened to ensure feeding accuracy. ●Equipped with a set of register device (left and right)
Inspection section
● insepect printing and variable barcode defects. ● Inspect both the front and back sides for printing defects, die-cutting detection accuracy ,code and etc comprehensively . ● feed paper with the printing surface facing down ,to avoid the second scratch. ● inspect with stability to make machine vision extremely close to human eyes, efficiently avoid the waste and saving cost. ●easy to install and connect to existing folder gluer machine without any modification ,or used as inspection machine alone.
Ejection
● equipped with import high speed CCD camera for real-time capture, comparing with the standard sample boxes . ● the principle of the detection system, pick genuine, authentic only by removing device can, if not meet the conditions, are regards as waste removed to ensure genuine no waste. ●when the detection system is ready to solve other cases of instability ,the impact on the detection system, fully guaranteed authentic channel without waste. ●easy to operate as long as the computer knowledge can operate detect removed.
Pre-folding
Long pre-folding device ,1st folding line is 180 °, 3rd folding line has 135。It is use for easy opening boxes. 135°pre-folding belt with angle adjustable design Auto motorized adjustment system
Crash lock bottom
With special aluminum material module design,which provides great convenient for the installation and changeover time. Two carriers with sectional structure,suitable for odd-shaped boxes. Sectional carriers for flexible length adjustment. Auto motorized adjustment system
Servo Back folding section
4/6 corners servo-drive back folding system (optional) Using Japan servo system to make sure the back folding accuracy. PLC industry control mode and human-computer interface for easy operation. Back folding device speed up or down synchronous. Back folding system 300m/min.
Folding section
●Special long folding section, boxes can be well folded and formed in this section. ●Inner couriers are adjusted by motors ● Rail-guide for belts are used to avoid belts going to sides.
Trombone
● Independent motor for variable frequency control,easy to operate ● High speed batch Counting kicker ● Upper and lower belts can be telescopically adjusted easily. ● Ready to be in line with host and stacker by PLC industry control mode and human-computer interface ,Ease-of-use remote control the machine for job set-up.
Conveyor
Upper and lower belts can move front and back ● Independent motor for variable frequency control ● Stacker adopt pneumatic adjusting pressure meet different boxes ● Driven-belt convey paper can be customized according to the shape of box to stack perfectly. ● Box jam-up detector
Company Profile
Yadu Machinery (YDM),initially established in 2008,has been devoting itself to the technical creation and reliable design of folding and gluing with the spirit of professional manufacture.Today,with the strengthening of young research and development group,product systems and after-sales team,skilled and advanced folding and gluing solutions have been used in three main series of products of YDM:ST,ZX and YDS.All the series could satisfy the need both in box shapes and materials of customers,the automatic production of corrugated boxes and cardboard cosmetics,food,medicine boxes is efficient.As the innovative pioneer of the industry,YDM represents the remarkable innovation ability,skill competitiveness and one-class service,and it is growing up being an international cooperative partner serving the efficient folding and gluing machines.We are focused on folding and gluing solutions.
Our Service
TECHICAL SERVICES Technical services will be performed in all the aspects, from pre-sale process to after-sale process. According to every customer’s unique features and expectations, we give you customized suggestions and services. TRAINING YDM’s specialists can offer different trainings at our manufacture, or directly at customer’s facilities. We make sure your employees understand YDM equipment very well to guarantee your high efficiency and productivity. YDM pioneer in the industry to set up a "engineer-base" based on our 12000 square meter factory and customer resources, and we are cooperating with some colleges and technical academies, trying to establish a professional folding and gluing solutions database relied on the advanced technique, skilled engineers and reliable service.
We offer service mainly by the following ways: 1,Send engineer to your company to help with the installation of our folder gluer machine. 2,We train your engineers if they would like to come to our factory . 3,Our engineer offer training of your engineer in your company.
IN-DEPTH INSPECTION AND MAINTENANCE We talk for your facilities. Through all the detailed measurements and inspections, we inform you all the improvements, repairs and maintenance your facilities need. And through our maintenance, we predict all the potential problems, help your machine work smoothly with less downtime. SPARE PARTS AND CONSUMABLES YDM has its well-organized spare parts storage, all the parts are totally qualified and ready to be sent to anywhere of the world. We guarantee the shortest delivery time and the best quality. Assembly instruction will be sent together with our spare parts. MACHINE IMPROVEMENTS In order to offer the best performance products to our customers, YDM never stops working on updating and improving our products. With more than 10 years of experience on the field, we are expert to improve your facilities for your specific jobs.
