Χαρακτηριστικά

Προδιαγραφές

Warranty: 1 Year

Type: Other

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Beverage Shops,

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition: New

Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type: Film

Packaging Material: Plastic

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 380V

Power: 3kw

Weight: 600kg

Dimension(L*W*H): 14000mm*4000mm*170mm

Key Selling Points: High Productivity

Product name: auto gluer machine

Function: gluing corrugated cardboard

Packing material: film

Speed: 220/min

After Warranty Service: Online support

Local ServiceÂ Location: None

After-sales Service Provided: Field installation, commissioning and training

Πιστοποίηση: CE

Βασικές πληροφορίες

Πιστοποίηση: CE

Πληρωμής & Αποστολής Όροι

Packaging Details: film

Supply Ability: 1 Set/Sets per Month

Περιγραφή προϊόντων

Product Description

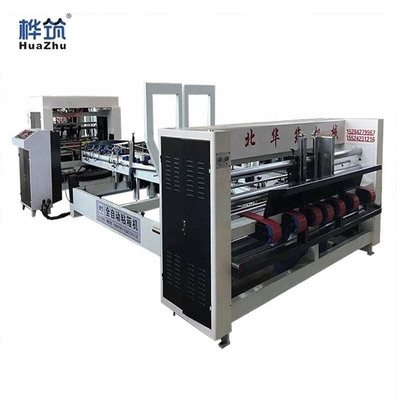

Introduction of the whole machine QZD type automatic sticky box machine, by feeding the gelatinize, folding and accumulated count of three parts, digital display, microcomputer amplitude modulation of speed and is simple in the fast and reliable precision control mode, automatic feeding, automatic glue fold, automatic counting, automatic stacking output, sticky box speed an average of 150 per minute, top speed of 220 per minute, efficient energy conservation and environmental protection is our highest pursuit. Functional characteristics 1. Automatically complete the upper and lower part of the bending and can complete the adhesive tape at the same time, save time and work. 2, applicable to a wide range of cartons, different sizes of cartons easy to adjust quickly. 3. Stable and reliable operation of the whole machine, firm and beautiful packaging effect. 4. The equipment is easy to operate and maintain. 5. Automatically correct the straight Angle of the carton.

Model	YL-2300	YL-2600	YL-2800	Special for small boxes
SIZE A（mm）	80-880	80-880	80-880	80-880
SIZE B（mm）	700-2300	700-2600	700-2800	700-2300
SIZE C（mm）	160-840	160-840	160-840	160-840
SIZE(mm)	260-1050	260-1050	260-1050	170-1050
Installation area (mm)	3500×14000	4200×15000	4500×16000	3500×14000
Motor Power (KW)	10kw	12kw	10kw	12kw

FEEDING DEPARTMENT

1. Adopting the belt leading edge suction and paper feeding method, accurate and reliable 2. The use of high-grade electromagnetic clutch and electromagnetic brake system, so that the paper supply department can be independently controlled, simple and reliable operation 3. The height of the press wheel is adjustable, suitable for the cardboard thickness of 2-8mm 4. Linkage with folding part, variable frequency speed regulation, paper supply speed 0-150m/min 5. The front baffle of the paper supply department and the paper belt can be adjusted left and right.

FOLDING PARTMENT

1. The main motor adopts frequency conversion speed regulation system which is noiseless, flexible and stable

2. Adopt imported high-friction belt to transport paperboard and automatically fold it

3. The stainless steel wheel is applied with uniform amount of glue, trouble-free and glue-saving

4. The folding part is equipped with paperboard correction device and indentation correctiondevice

5. The folding part has two rows of adjustable inner locating regulating wheel system, with higher forming accuracy

6.Folding speed is 0-150m/min

COUNTER STACK DIVISION

1. Automatic stacking neat output 2. Technology Department main motor frequency conversion speed adjustment, adjustable speed, stable and reliable startup 3. Use belts to transport cartons, which are stacked neatly at a speed of 0-130m/min 4. Using the slapping board to hit the carton, it has the function of rectifying deviation with very small deviation 5. Pneumatic counting and rolling out, PLC electronic control, reliable, accurate and fast action 6. PLC programming controller and touch screen digital control, simple operation, reliable action without stopping input data, automatic counting 7. The output part adopts the belt at the bottom and the belt at the top to compress synchronously, making the finished carton stick firmly and output neatly.
