Χαρακτηριστικά

Προδιαγραφές

Type: Gluing Machine

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Restaurant, Printing Shops, Other

Showroom Location: Egypt, Canada, Turkey, United Kingdom, France, Germany, Viet Nam, Kenya

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: PLC, Engine

Condition: New

Application: Food, Medical, Machinery & Hardware, APPAREL

Packaging Type: Cartons

Packaging Material: Metal, Wood

Automatic Grade: Automatic

Driven Type: Mechanical

Voltage: 380V

Dimension(L*W*H): 14000*1550*1450mm, 14000*1550*1450

Weight: 6.5 KG

Warranty: 1 Year

Key Selling Points: High-accuracy

After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Field maintenance and repair service

Product name: Automatic crash-lock bottom boxes Folding Gluing Machine

Item name: carsh-lock boxes folding and gluing machine

Suitable material: 220~800gm2 cardboard ,E flute corrugated board

Style: paperbox folder gluer machine

Feeding method: Automatic continuous feeding

Keyword: automatic folder gluer machine

Πιστοποίηση: CE; ISO9001, CE; ISO9001

Max mechaical speed: 350m/min

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: Egypt, United States, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Australia, Morocco

Βασικές πληροφορίες

Πιστοποίηση: CE; ISO9001, CE; ISO9001

Πληρωμής & Αποστολής Όροι

Packaging Details: Packing of ZH-780APC Automatic crash-lock bottom boxes Folding Gluing Machine Packaging Details :packed with wooden cartons separatedly

Supply Ability: 100 Set/Sets per Month automatic carsh-lock boxes folding and gluing machine

Περιγραφή προϊόντων

Specifications

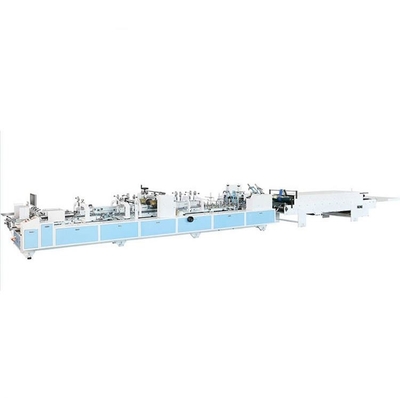

ZH-780APC Automatic crash-lock bottom boxes Folding Gluing Machine

ZH-780APC folder gluer is the lastest multi-funcional crash lock bottom folder gluer, it made indelible contributions to the field of folder gluer. Itcombines a variety of folder gluer features, the generale-paste, pre-folded lines with crash lock bottom. We got two patterns for this model. It's powerful, widelyusage, easy operatng and adjusting as well aseconomic.Especially for the current packaging and printing industry, it can solve the problem of many different boxes, less quantity, the delivery of the tight schedule and so on. It will help you to recover the investment cost back quickly.

This gluer is widely used in processing medicine box, wine box, cosmetics box and Electric appliances packing box etc.

Our product advantage:

Modular design allows different configurations, to meet customer's needs.

Wide range of accessories that allows to run thousands of designs.

Technical Parameters:

Product name	ZH-780APC Automatic crash-lock bottom boxes Folding Gluing Machine
Model	ZH-780APC
Suitable material	Card board, E flute corrugated board
Feeding method	Automatic continuous feeding
Max mechanical speed(MAX)	350m/min
Overall dimension(L.W.H)	1400015501450mm
Glue type	Solvent
Weight	6.5T
Power consumption	11.8KW
Machine configuration:
Main motor	TECO Taiwan
Inverter	Siemens
Timing belt and pulley	Optibelt German
Optibelt	German
Bearing	NSK
Main axis	Taiwan chrome plated steel bar
Wall thickness	20mm tempered
Feeding belt	Habasit Switcherland
Plain belt	Nitta Japan
Low voltage apparatus	Omron / Fuji
Fasten bolts	Level 8.9 Taiwan
Optional configuration:
High frequency plasmaC
Yaskawa servo system (for Carsh-lock Bottom Box with Pre-Fold)
HHS glue spray system (for Carsh-lock Bottom Box with Pre-Fold)

Characteristics

ZH-780APC
Box type		Straightline box	Double sides box	Crash-lock bottom box	4-corner box	6-corner box
A	MAX	800	600	780	700	750
A	MIN	120	100	180	150	200
B	MAX	1000	800	800	800	800
B	MIN	70	100	100	120	120
C	MAX	390	700	385	700	700
C	MIN	55	70	85	80	80
D	MAX	250	200	250	200	200
D	MIN	8	10	25	20	20

1. Why your machine similar with other supplier?

We design machines by ourselves with advanced technology. Apperance just a part machine, service and quality is more important than it.

2. What kind of machines can you supply to customer?

We could offer various kinds of machines and whole production line

Our Advantages

1.We have professional technical team,have many patent technology.

We can provide customized packaging solution.show us requirement,it's ok.

2.We have professional after-sale team, can provide services to customers at any time.

After sales director:0086-13906879103

Group Director:0086-13955806881

3.We have export to many European and American countries,Germany,USA,Canada,Portugal...Argentina and so on.

Warranty Service:

Machines are new (or unused) and the gurantee period will be given thirteen months from shipment date. During this period, the seller will offer free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishading and consumable parts are not covered by any warranty.
