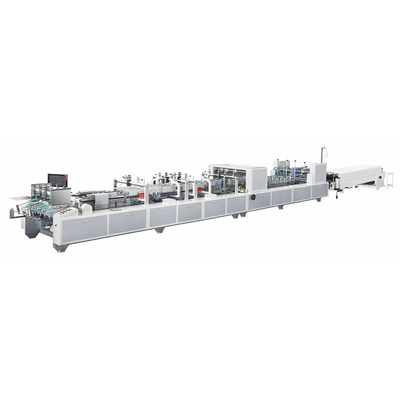

ZH-A1050 Automatic Food Folder 4 6 Corner Gluer Machine With Higher Coating Speed

ZH-A1100 Automatic 4 6 corner folder gluer machine with higher liner speed

Characteristics

1.Driving by synchronous belt,ensure smooth and accurate running.
2.Inverter driving,stable and power saving.
3.Use electric adjust,easy operate.
4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
5.Automatic counting and kicking,quantity can preset.
6.Conveyer pressure adjustable according to the box to ensure best quality.

Feeder Section

● Equipped with vibrating motor.
● With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.
● Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.
● Feeding knifes are equipped with pneumatic mechanism for smoother feeding.
● Configure the display, real-time monitoring of the paper is normal

Paper Alignment System

● Automatic alignment system to correct the paper feeding,avoid the paper going to sides.
● UV destroying device and dust removing device for better gluing effect.

Folding Section

●Equipped with speed variator for belts,ensure the folded boxes parallel and in good order.

●Fast,convenient adjustment and operation can fold boxes perfectly.

Press Section

●Adjust the pressure with the upper and lower belts.For flute A,B corrugated board,overlapping and jogger devices are equipped to ensure box gluing well.
●After kicker is set up,whatever speed the machine runs,the kicker can automatically follow,no need to reset it.

FAQ

1.Which machine do you require?

Pls contact our sales,who will assist you to select the best machine to suit your requirements.

2.What's your payment methods?

We accept T/T,L/C,Alipay etc.

3.What about the manufacturing details?

We anufacture ,test and pack the machines.We also include spares,operating manual,video and photos of delivery.

4.Terms of payment?

30% for deposit,the balance is paid before shipping.

5.What about installation?

We can offer you our engineers to install and train worker in your factory.You pays all the expenses including the air ticket,food and accommodation and salary 100usd/day for engineer during this period.
